Enceladus Plume

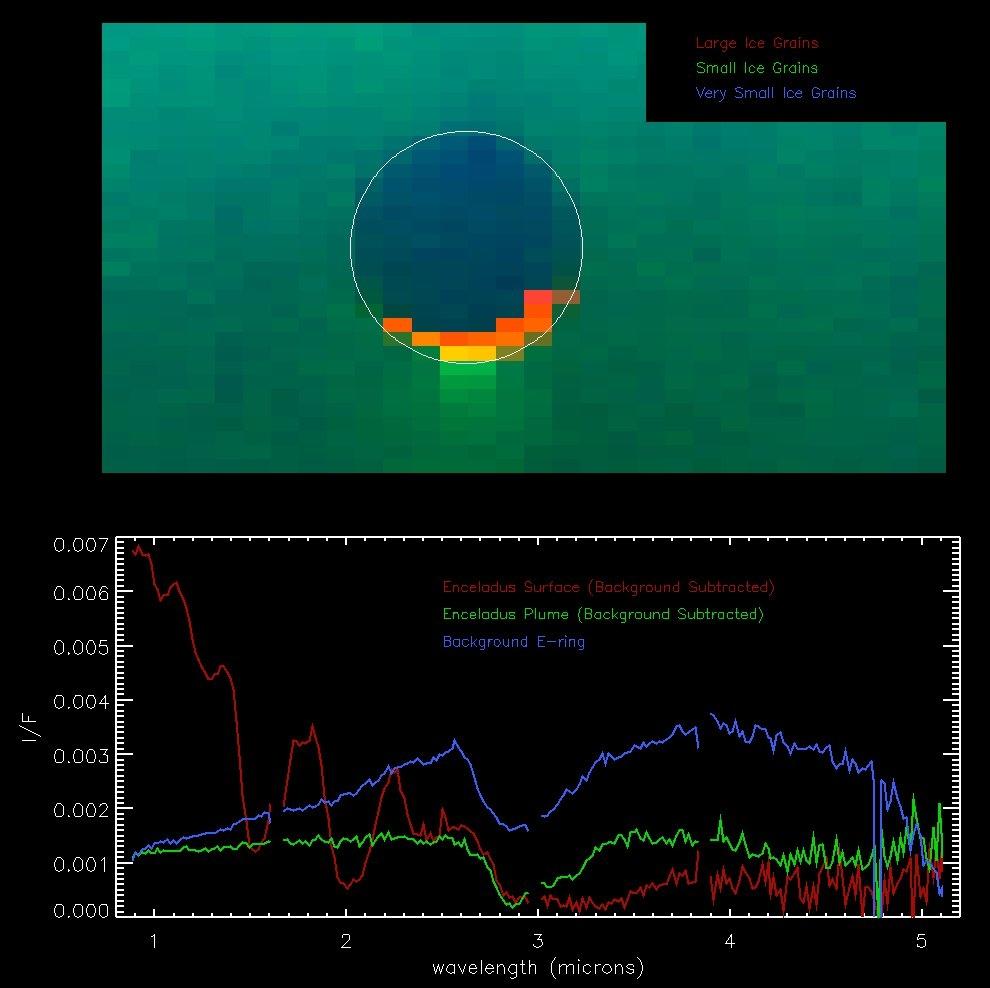

Image top: signature of small ice particles in the plume data; image bottom: graph graph showing the measurements of the spectrum
PIA NumberPIA06443
Language
  • english

During a non-targeted flyby by the Cassini spacecraft of Saturn's moon Enceladus on Nov. 26, 2005, Cassini's visual and infrared mapping spectrometer measured the spectrum of the plumes originating from the south pole of the icy moon.

The instrument captured a very clear signature of small ice particles in the plume data, at the 2.9 micron wavelength. This image of Enceladus, taken with the visual and infrared mapping spectrometer, shows not only the plume over the south pole, but also the dark side of the moon, silhouetted against a foggy background of light from the E Ring.

The bottom graph shows the measurements of the spectrum, of this background light. It shows a very similar signature of small ice particles to that in the plumes, confirming earlier expectations that Enceladus is indeed the source of the E ring.

Preliminary analyses suggest that the average size of the particles in the plume is about 10 microns (or 1/100,000 of a meter). The particles in the E ring are about three times smaller. The sunlit surface of Enceladus itself, visible as a thin crescent at the bottom of the image, is also composed of water ice, but with a much larger grain size than the plume.

The Cassini-Huygens mission is a cooperative project of NASA, the European Space Agency and the Italian Space Agency. The Jet Propulsion Laboratory, a division of the California Institute of Technology in Pasadena, manages the mission for NASA's Science Mission Directorate, Washington, D.C. The Cassini orbiter was designed, developed and assembled at JPL. The visual and infrared mapping spectrometer team is based at the University of Arizona.

For more information about the Cassini-Huygens mission http://saturn.jpl.nasa.gov. The visual and infrared mapping spectrometer team homepage is at http://wwwvims.lpl.arizona.edu.

Credit: NASA/JPL/University of Arizona
